UCAN powder actuated fasteners are manufactured from high quality spring steel wire. For optimum hardness and toughness, all fasteners are heat treated to a core hardness of RC 50 – 54. To provide protection against corrosion, fasteners are zinc plated to a thickness of minimum 0.0003″ (7.5µm).
8 mm Headed Fasteners

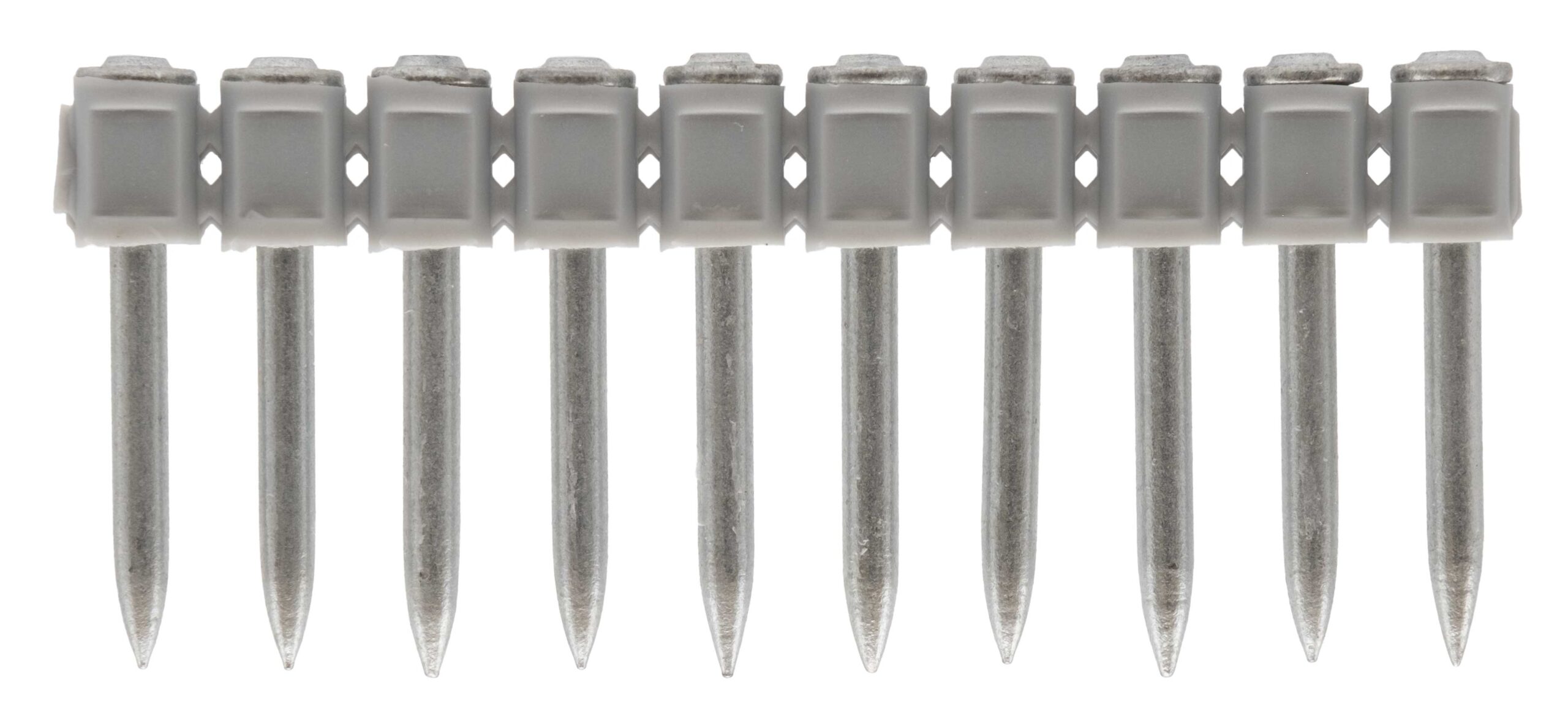

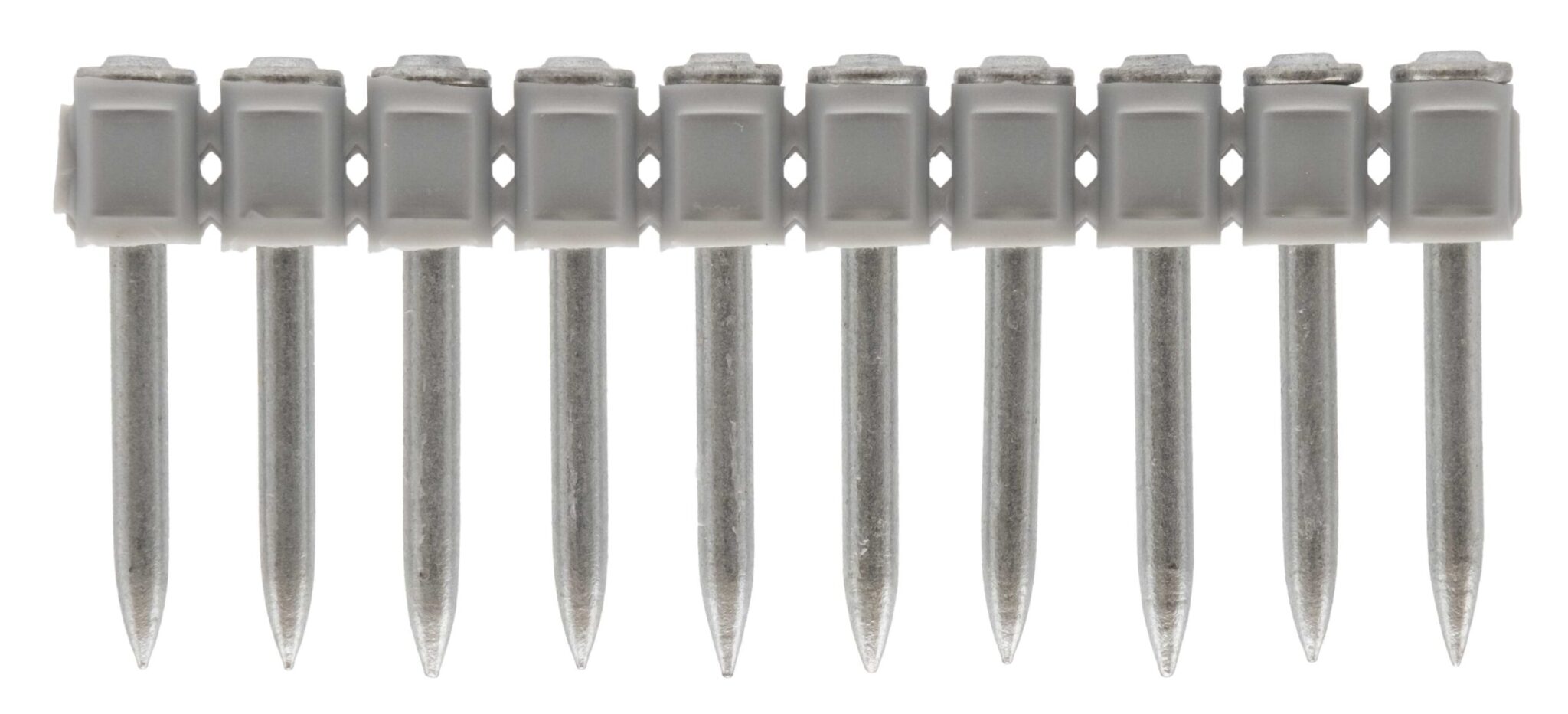

8 mm Headed Fasteners: Collated Pins – 10 Pin Magazine
With Super Point for Magazine Type PA Tools
COLLATED 10 PIN MAGAZINE
| Part No. | Shank Length | Pkg. Qty. | Case Qty. | Case Wt. | Case Size |
| UD 16KS | 5/8 | 100 | 1,000 | 6 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 19S | 3/4 | 100 | 1,000 | 6 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 22S | 7/8 | 100 | 1,000 | 7 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 27S | 1-1/8 | 100 | 1,000 | 8 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 32S | 1-1/4 | 100 | 1,000 | 9 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 37S | 1-1/2 | 100 | 1,000 | 10 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 47S | 1-7/8 | 100 | 1,000 | 12 lbs | 3-1/2″ x 12″ x 7-1/2″ |
| UD 57S | 2-1/4 | 100 | 1,000 | 13 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| UD 62S | 2-1/2 | 100 | 1,000 | 15 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| UD 72S | 2-7/8 | 100 | 1,000 | 17 lbs | 4-3/4″ x 15-3/4″ x 7″ |
