UCAN Introduces its´ new SDS PLUS Depth Control Bit, specifically designed to work in conjunction with UCAN drop-in anchors and setting tools. While the bits’ large collar prevents overdrilling and guarantees optimal hole depth, the stepped setting tool ensures the drop-in anchor is fully set. Using this matching system allows the installer to quickly and efficiently achieve maximum anchor performance.

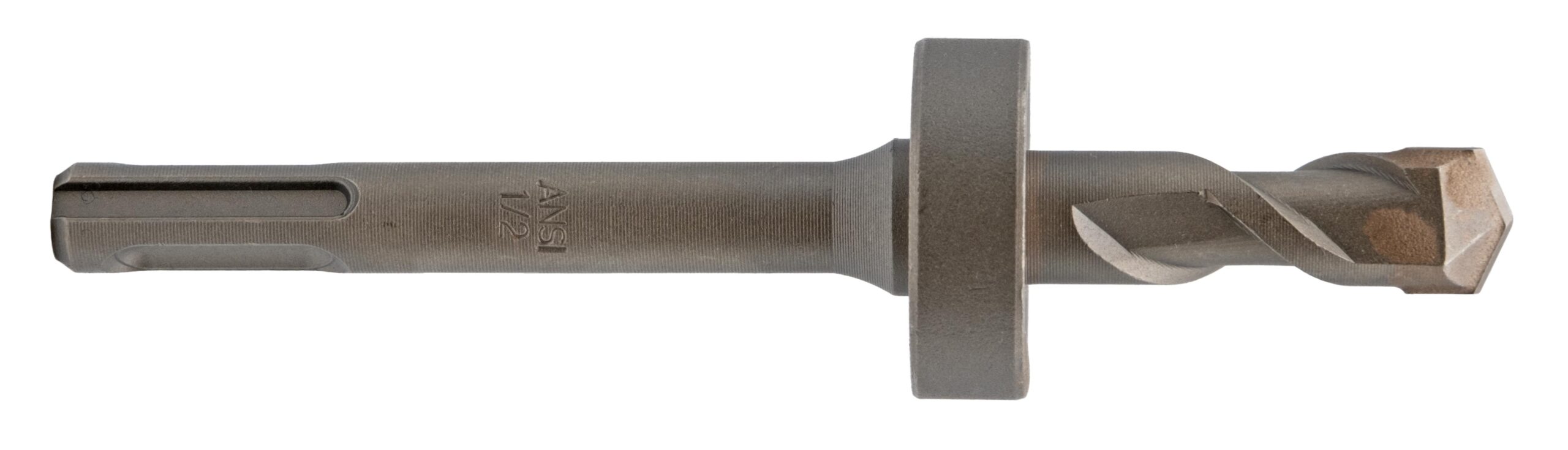

Depth Control Drill Bits
Depth Control Drill Bits
UCAN Introduces its´ new SDS PLUS Depth Control Bit, specifically designed to work in conjunction with UCAN drop-in anchors and setting tools. While the bits’ large collar prevents overdrilling and guarantees optimal hole depth, the stepped setting tool ensures the drop-in anchor is fully set. Using this matching system allows the installer to quickly and efficiently achieve maximum anchor performance.
FEATURES
- Centering tip for quick and accurate spot drilling
- Flute extends all the way to stop ring for efficient dust extraction
- Large diameter stop ring to avoid over drilling
- Available in 2 popular diameters, 1/2” & 5/8”
- ANSI compliant
- High quality carbide tip brazed to tempered steel for fast drilling and long bit life
- Rapid dust removal
SDS PLUS DEPTH CONTROL DRILL BIT
| Part No. | Drop-in Anchor Size | Pkg. Qty. |
| SDS 1438DC | 3/8 X 1” for Drop-in Anchor | 1 |
| SDS 3812DC | 1/2 X 1 – 11/16” for Drop-in Anchor | 1 |
| SDS 1258DC | 5/8 X 2 – 16/6” for Drop-in Anchor | 1 |
| SDS STUBIDC | 1/2 X 3/4” for STUBi Drop-in Anchor | 1 |
