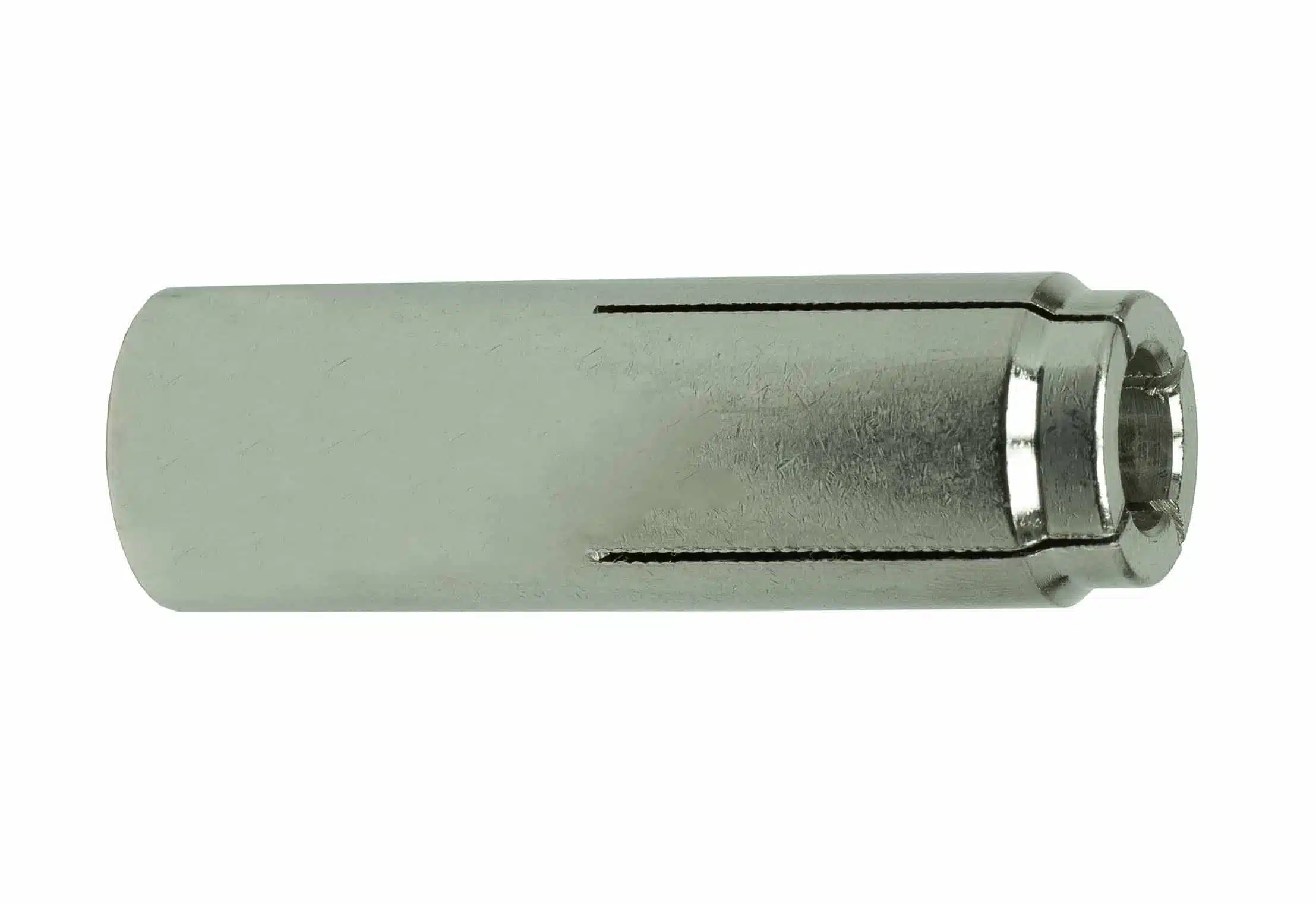

The UCAN drop-in anchor is an internally threaded anchor, which is preassembled with an internal expansion plug. These anchors are available in both carbon steel and stainless steel. The carbon steel anchor is zinc plated to extend corrosion protection.
Drop-In Anchors
Drop-In Anchors – Stainless Steel (Type 304)
The UCAN drop-in anchor is an internally threaded anchor, which is preassembled with an internal expansion plug. These anchors are available in both carbon steel and stainless steel. The carbon steel anchor is zinc plated to extend corrosion protection. For best results, use with UCAN ANSI size drill bits and UCAN installation or setting tools. The stepped installation tool allows for correct anchor setting. Both manual and auto setting tools are available. The anchor is designed to deliver consistent holding power at shallow embedment. Three popular sizes are FM Approved, 3/8-1/2”, 1/2-5/8” and 5/8-78”.
FEATURES
- Pre-assembled design
- Can be used in flush or countersunk applications
- FM Approved sizes: IPA 3812, IPA 1258 & IPA 5878 (in red)
TYPICAL APPLICATION:
- Sprinkler systems
- Cable trays
- Machinery Installation
- Pipes valves support
- Temporary fastening for cutting/coring
STAINLESS STEEL (TYPE 304)
| Part No. | Thread Size | Drill Size | Pkg. Qty. | Case Qty. |
| IPS 1438 | 1/4 | 3/8 | 100 | 2,000 |
| IPS 3812K | 3/8 | 1/2 | 50 | 1000 |
| IPS 1258 | 1/2 | 5/8 | 50 | 500 |
| IPS 5878 | 5/8 | 7/8 | 25 | 200 |
| IPS 341 | 3/4 | 1 | 25 | 100 |
Note:
Sizes highlighted in Red are FM Approved.
