The UCAN Hollow Wall anchor is a light duty screw type expansion anchor designed specifically for fastening to cavity walls, constructed of drywall, plaster or wallboard. It is available in 1/8″ to 1/4″ screw sizes.

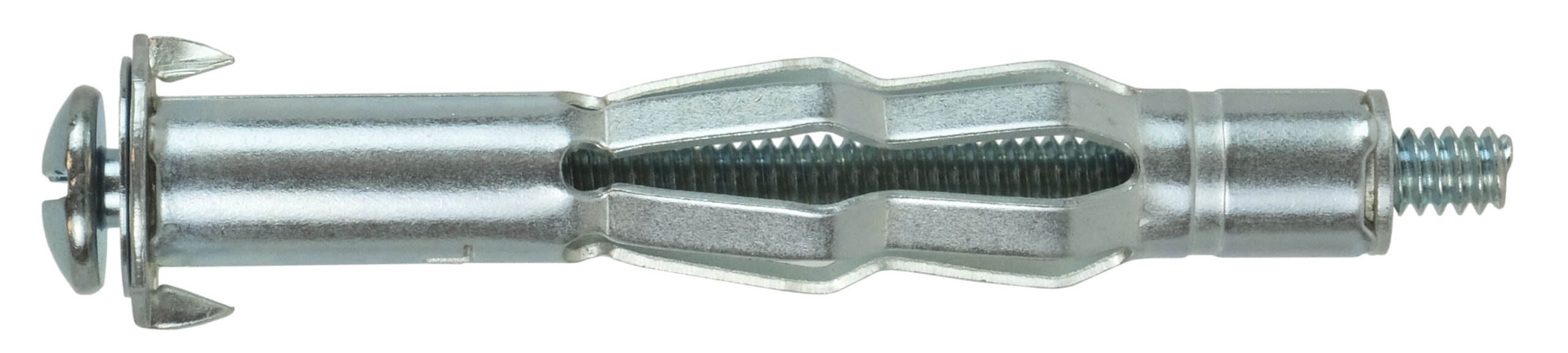

Metal Hollow Wall Anchors
Metal Hollow Wall Anchors
Zinc Plated
The UCAN Hollow Wall anchor is a light duty screw type expansion anchor designed specifically for fastening to cavity walls, constructed of drywall, plaster or wallboard. It is available in 1/8″ to 1/4″ screw sizes. Once installed, the anchor creates a bearing surface with expanded arms guaranteeing a secure and reliable fixture. This anchor comes complete with a combination head for both Square socket and slot screw drivers. It is also available in 1/8″ size as a drive type which does not require a predrilled hole.
FEATURES
- One piece unit for fast installation
- Can be installed with a hollow wall anchor installation tool or a screw driver
- Drive type does not require predrilled hole
TYPICAL APPLICATIONS:
- Fastening into hollow material
- Light loading applications
- Fastening into panel-boards
- Light shelving
HOLLOW WALL ANCHOR
| Part No. | Screw Size | Drill Size | Grip Range | Pkg. Qty. | Case Qty. | Case Wt. | Case Size |
| MWA 18XS | 1/8 x 3/4 | 5/16 | 0-1/2 | 100 | 1000 | 10 lbs | 3-1/2″ x 11-3/4″ x 7-1/2″ |
| MWA 18S | 1/8 x 1-3/4 | 5/16 | 1/8-1/2 | 100 | 1000 | 14 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| MWA 18SL | 1/8 x 3/4 | 5/16 | 1/8-3/4 | 100 | 1000 | 14 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| MWA 18L | 1/8 x 1-3/4 | 5/16 | 5/8-7/8 | 100 | 1000 | 19 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| MWA 316S | 3/16 x 2 | 7/16 | 1/8-5/8 | 50 | 500 | 18 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| MWA 14S | 1/4 x 2 | 1/2 | 1/8-5/8 | 50 | 500 | 24 lbs | 4-3/4″ x 15-3/4″ x 7″ |
| MWA 14L | 1/4 x 2-1/2 | 1/2 | 5/8-1-1/4 | 50 | 500 | 14 lbs | 5-1/2″ x 18-3/4″ x 8-3/4″ |
