Tie Wire Anchors

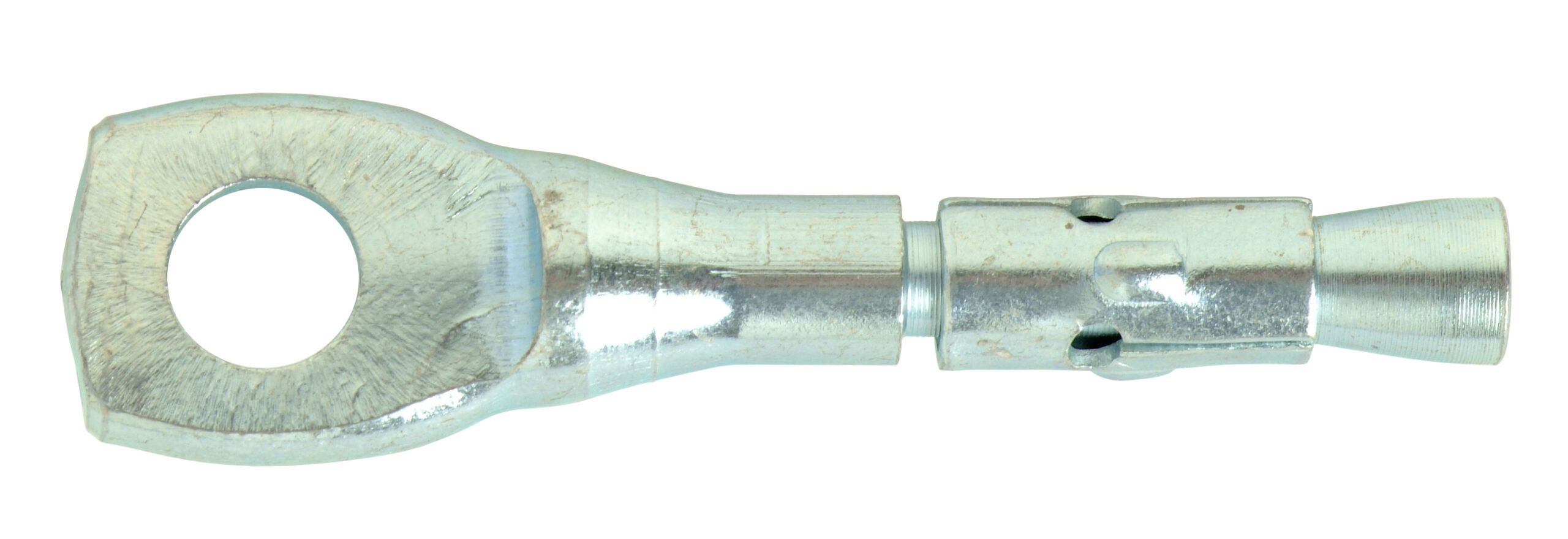

The Tie Wire wedge anchor is designed primarily for suspended ceiling installation. The anchor consists of a 1/4″ dia. steel body with 9/32″ diameter wire hole and a three segment expansion clip.
Tie Wire Anchors
Tie Wire Anchors
Tie Wire Anchors
The Tie Wire wedge anchor is designed primarily for suspended ceiling installation. The anchor consists of a 1/4″ dia. steel body with 9/32″ diameter wire hole and a three segment expansion clip.
FEATURES
- New design
- Heavier head
- Easier to set
TYPICAL APPLICATIONS:
- Suspended ceilings
TIE WIRE ANCHOR – ZINC PLATED
| Part No. | Size | Eye Dia. | Pkg. Qty. | Case Qty. | Case Wt. | Case Size |
| EP 932 | 1/4″ x 2-1/4″ | 9/32 | 100 | 1,000 | 38 lbs | 15″ x 7-3/4″ x 5″ |
| EP 932M | 1/4″ x 2-1/4″ | 9/32 | – | 1,000 | 36.5 lbs | 10″ x 9-3/4″ x 4″ |
