Wedge Anchors – Stainless Steel Type 316

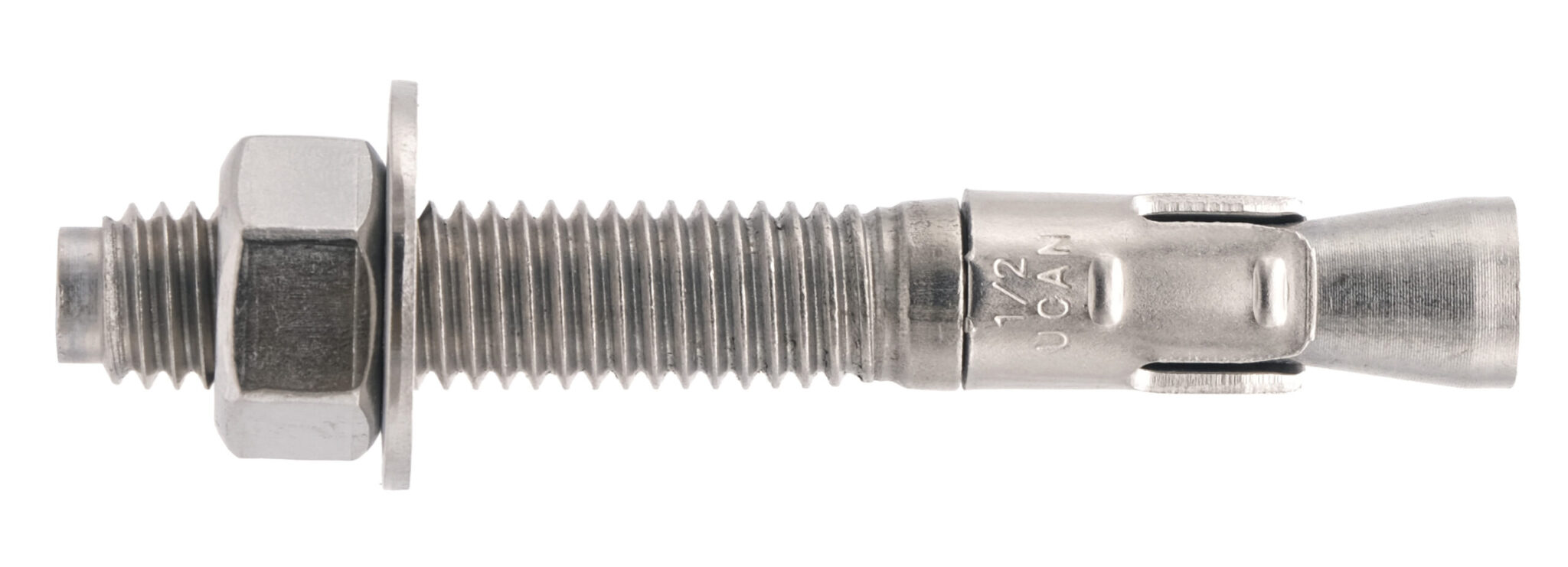

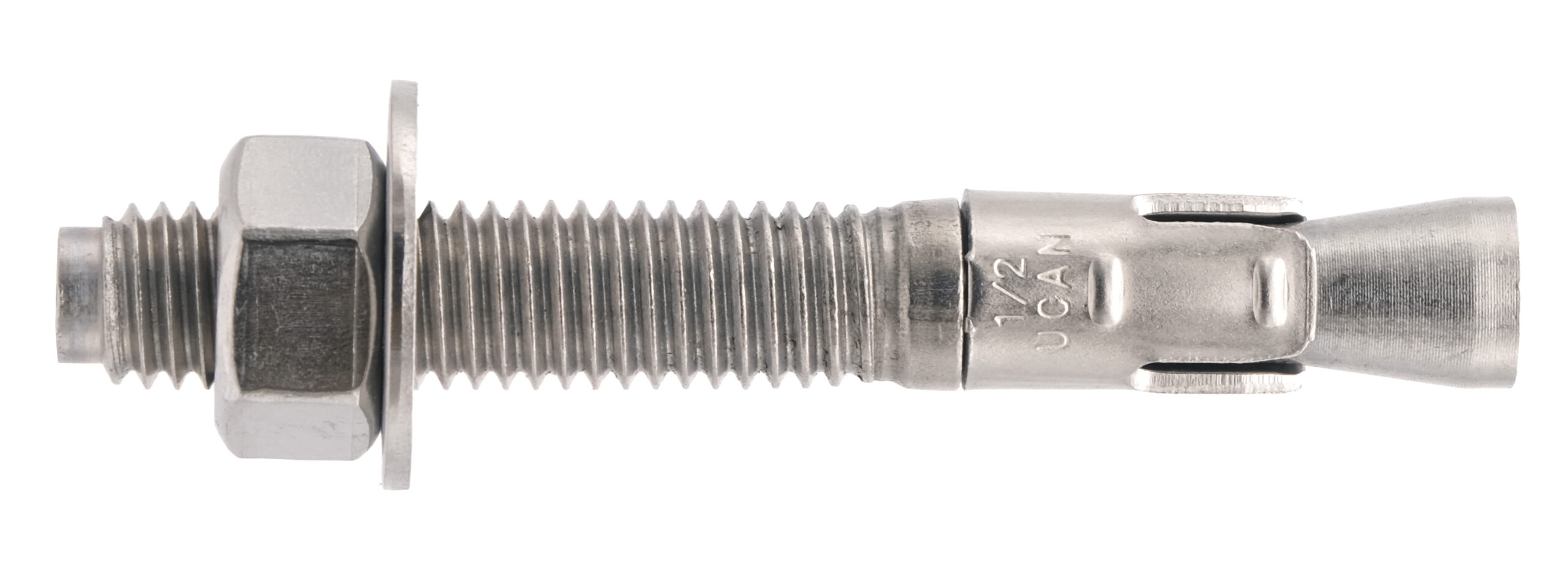

The UCAN IST stainless steel anchors are fully threaded torque controlled expansion anchor assembled with a three segment expansion clip. The anchors are manufactured from stainless steel, including the expansion clip, nut and washer. This anchor type is most suitable for corrosion resistive anchoring applications for static loading and can be loaded immediately.
Wedge Anchors – Stainless Steel Type 316
The UCAN IST stainless steel anchors are fully threaded torque controlled expansion anchor assembled with a three segment expansion clip. The anchors are manufactured from stainless steel, including the expansion clip, nut and washer. This anchor type is most suitable for corrosion resistive anchoring applications for static loading and can be loaded immediately.
STAINLESS STEEL TYPE 316 WEDGE ANCHORS
| Part No. | Size | Pkg. Qty. | Case Qty. | Case Wt. | Case Size |
| IST 14134 | 1/4″ x 1-3/4″ | 100 | 800 | 27 lbs | 14-1/2″ x 11″ x 6-3/4″ |
| IST 14214 | 1/4″ x 2-1/4″ | 100 | 800 | 31 lbs | 14-1/2″ x 11″ x 6-3/4″ |
| IST 14314 | 1/4″ x 3-1/4″ | 100 | 800 | 38 lbs | 14-1/2″ x 11″ x 6-3/4″ |
| IST 38214 | 3/8″ x 2-1/4″ | 50 | 400 | 35 lbs | 14-1/2″ x 11″ x 6-3/4″ |
| IST 38234 | 3/8″ x 2-3/4″ | 50 | 400 | 40 lbs | 14-1/2″ x 11″ x 6-3/4″ |
| IST 38334 | 3/8″ x 3-3/4″ | 50 | 400 | 49 lbs | 14-1/2″ x 11″ x 6-3/4″ |
| IST 385 | 3/8″ x 5″ | 100 | 300 | 27 lbs | 5-1/2″ x 11″ x 10″ |
| IST 12234 | 1/2″ x 2-3/4″ | 50 | 150 | 29 lbs | 10-1/2″ x 10″ x 5-3/4″ |
| IST 12334 | 1/2″ x 3-3/4″ | 50 | 150 | 35 lbs | 10-1/2″ x 10″ x 5-3/4″ |
| IST 58412 | 5/8″ x 4-1/2″ | 25 | 75 | 36 lbs | 10-1/2″ x 10″ x 5-3/4″ |
| IST 586 | 5/8 x 6 | 25 | 75 | 44 lbs | 10-1/2″ x 10″ x 5-3/4″ |
| IST 587 | 5/8 x 7 | 20 | 60 | 52 lbs | 5-1/2″ x 11″ x 10″ |
| IST 34414 | 3/4 x 4-1/4 | 25 | 75 | 38 lbs | 10-1/2″ x 10″ x 5-3/4″ |
| IST 347 | 3/4 x 7 | 15 | 45 | 42 lbs | 10-1/2″ x 10″ x 5-3/4″ |
