Zamac Precast Inserts-U
The UCAN Cast-in Place Zamac Insert is designed for preplanned fastening in concrete. The insert provides rustproof threaded metal holes in precast, pre-stressed or poured-inplace concrete.
Zamac Precast Inserts-U
Zamac Precast Inserts-U
Zamac Precast Inserts-U

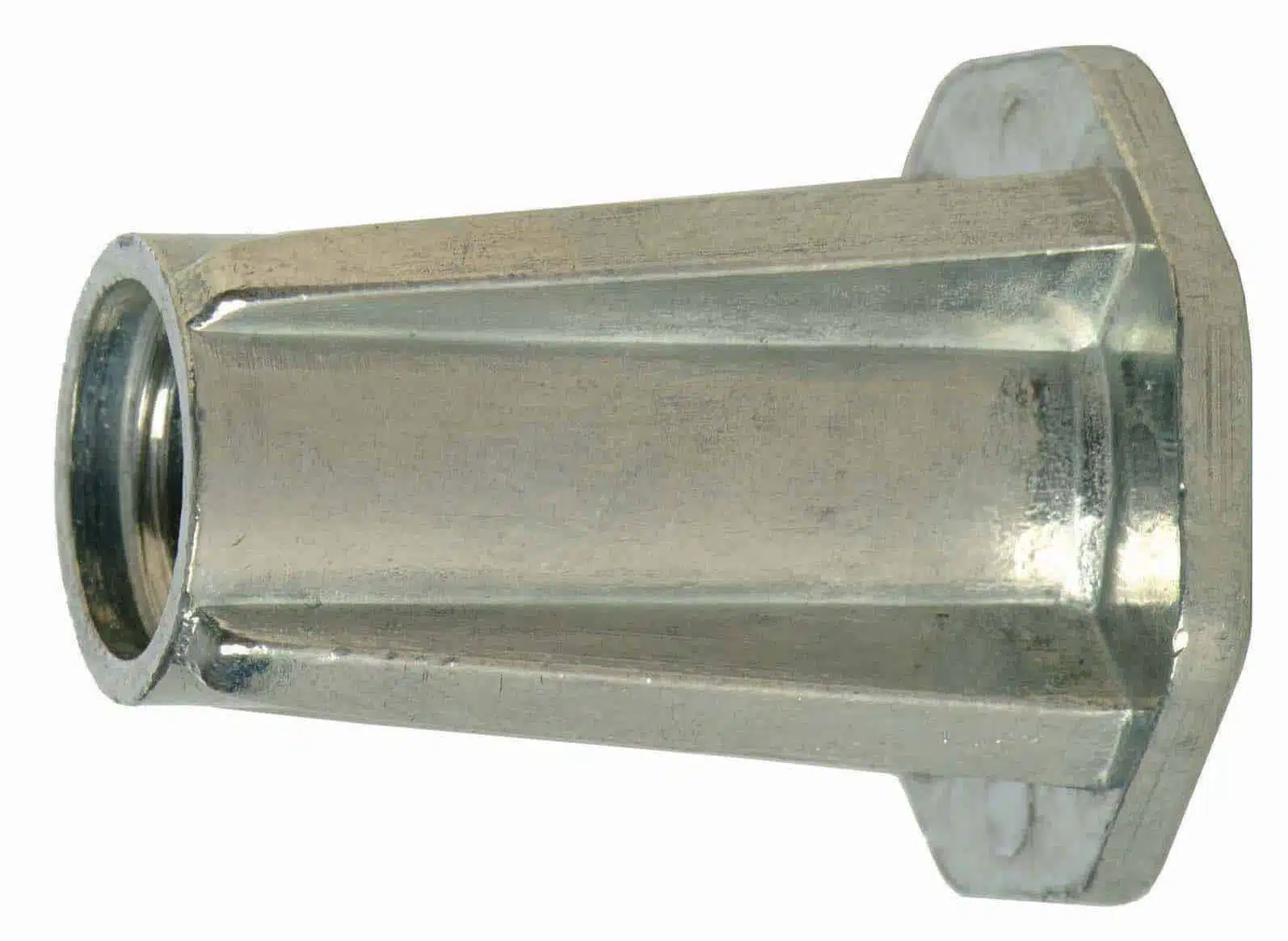

The UCAN Cast-in Place Zamac Insert is designed for preplanned fastening in concrete. The insert provides rustproof threaded metal holes in precast, pre-stressed or poured-inplace concrete. It is die cast of a zinc alloy (ZAMAC 5), which provides excellent resistance to atmospheric conditions and will not mar or stain finished installations. Install with bolts through holes in stell forms or by means of reusable concrete insert plugs on wood forms.
FEATURES
- Fastening is simplified when inserts are cast-in prestressed units, slabs and poured in concrete structures
- Preplanned location of inserts eliminates costly concrete drilling and masonry anchor installation
- Made of rustproof zamac alloy to prevent surface staining
TYPICAL APPLICATIONS
- Heavy Machinery
- Air Ducts
- Railings
- Traffic Lights
- Park Benches
- Theater Chairs
- Utility Poles
- Conveyor Systems
- Line Machinery
- Electrical
UCAN CAST-IN PLACE ZAMAC INSERT
| Part No. | Length (in) | Thread Size | Pkg. Qty. | Case Qty. | Case Wt. | Case Size |
| PZI 10 | 11/16 | 10-24 | 100 | 4000 | 47 lbs | 13-3/4″ x 8-1/2″ x 7″ |
| PZI 15 | 1-1/2 | 1/4-20 | 100 | 800 | 39 lbs | 14″ x 8-1/4″ x 6-3/4″ |
| PZI 24 | 1 | 3/8-16 | 100 | 1000 | 44 lbs | 14-1/2″ x 8-1/4″ x 6-3/4″ |
| PZI 25 | 1-3/8 | 3/8-16 | 100 | 700 | 45 lbs | 13-3/4″ x 8-1/2″ x 6-3/4″ |
| PZI 35 | 1-1/2 | 1/2-13 | 50 | 300 | 38 lbs | 13-3/4″ x 8-1/4″ x 6-1/4″ |
| PZI 36 | 2-7/8 | 1/2-13 | 25 | 150 | 45 lbs | 13-3/4″ x 8″ x 6-3/4″ |
| PZI 45 | 1-11/16 | 5/8-11 | 25 | 200 | 37 lbs | 14″ x 8-1/4″ x 7″ |
| PZI 46 | 2-7/8 | 5/8-11 | 25 | 100 | 36 lbs | 13-3/4″ x 8-1/4″ x 6-1/4″ |
| PZI 55 | 1-11/16 | 3/4-10 | 25 | 150 | 34 lbs | 13-3/4″ x 8-1/4″ x 6-3/4″ |
| PZI 56 | 2-7/8 | 3/4-10 | 25 | 120 | 33 lbs | 13-3/4″ x 8-1/2″ x 7″ |
